How to Accelerate Image Labeling with NLP & Image-Prompted Custom Coding

Classical image-processing algorithms can generate a first pass of defect labels before any deep-learning model is trained. In ReliVision you describe the defect in plain language, attach a reference image, and the platform generates a custom image-processing node that pre-labels it for you. This guide walks through that workflow end to end, using porosity detection in weld X-ray images as the worked example.

  • 4 steps
  • Under 5 minutes setup
  • 1 node — no separate model to train
  • No code

The background

Accelerating image labeling with classical computer vision

Traditional algorithms can quickly generate initial labels of suspected defects before training a deep learning (DL)-based inspection model.

Overall detection workflow

Define

Generate custom node(s) to detect likely porosity candidates.

Refine

Flag low-confidence detections and improve instantly.

Example: ReliVision uses NLP and image-prompted custom coding to generate classical image-processing nodes that label porosity in weld X-ray images, reducing manual labeling effort and creating a better starting dataset for supervised deep learning.

What a custom node is

A custom node is generated from a written description and a reference image, then dropped into the pipeline like any built-in node — there is no separate model to train.

Step 1 of 4

Open the Add Custom Node menu

On the Pipeline Editor page, scroll down in the left menu. Click the Add Custom Node button to create a custom node.

What to do

  1. Open ReliUI and go to the Pipeline Editor page.
  2. Scroll to the bottom of the node list in the left-hand menu.
  3. Click Add Custom Node. The node creation dialog opens.

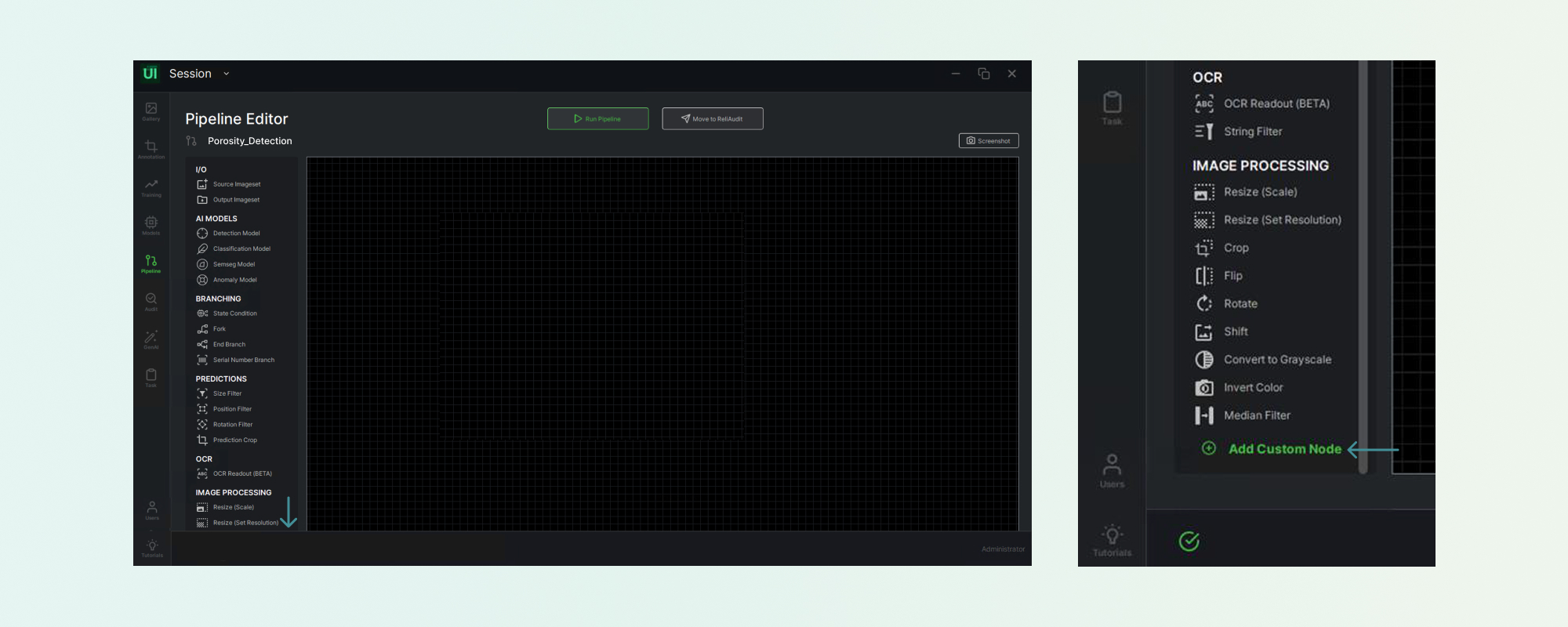

The ReliVision Pipeline Editor with the node menu scrolled to the Add Custom Node button.
The Add Custom Node button sits at the foot of the node menu in the Pipeline Editor.
Step 2 of 4

Enter a node name

Name the node for what it detects. In the worked example the node is called Porosity Detection.

What to do

  1. Enter a descriptive node name — for this example, Porosity Detection.
  2. Confirm to move on to the description step.

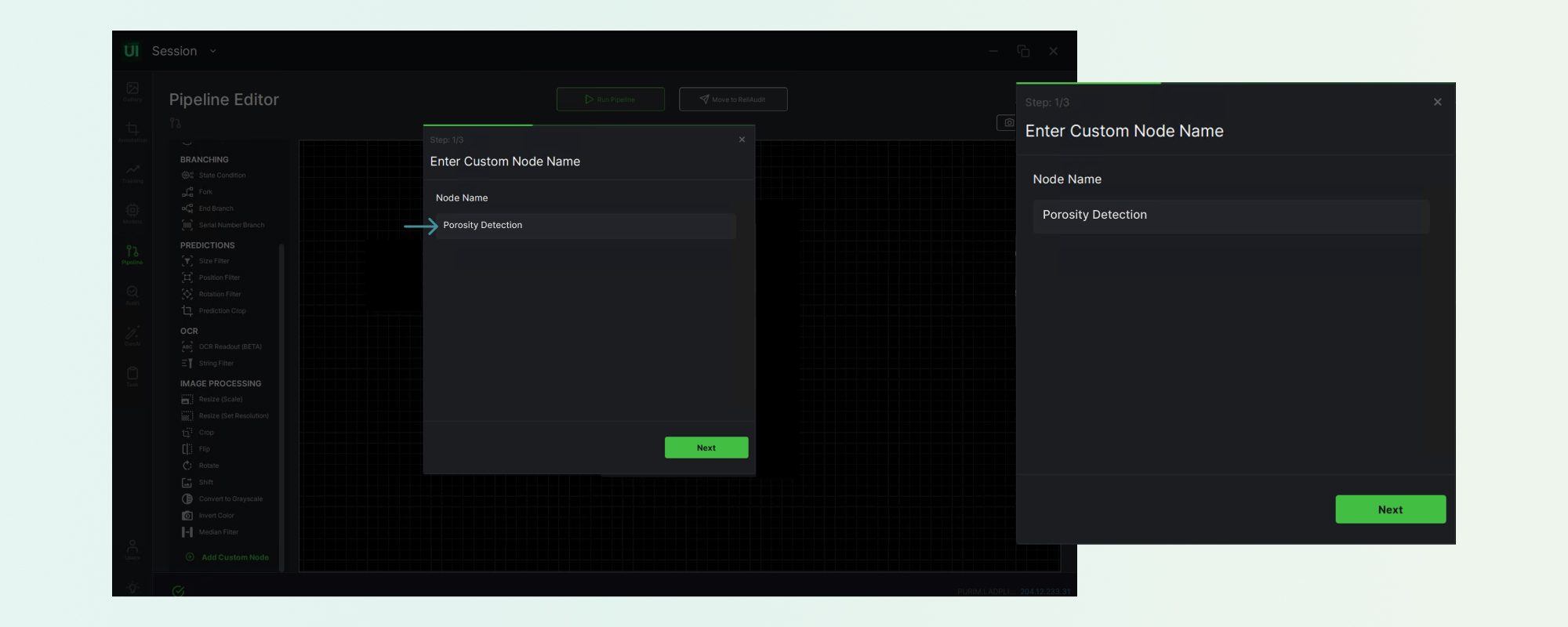

The custom node dialog with the node name set to Porosity Detection.
A node named for the defect it finds stays readable months later, when the pipeline has twenty blocks in it.
Step 3 of 4

Describe the target defect and add a reference image

Provide a detailed description and upload a reference image to help the model better understand the expected output.

Write the description

Describe the defect the way you would explain it to a new inspector: what it looks like, where it appears, and how it differs from the surrounding material. For porosity in weld X-rays, that means small dark rounded voids inside the weld bead, distinct from the lighter parent metal and from the straight edges of the bead itself.

  1. State the shape and contrast of the defect — for example, small dark circular voids against a lighter weld bead.
  2. State where it occurs, so the node is not looking at the whole frame: inside the weld bead only.
  3. Name what it should not flag — scratches, bead edges, or surface marks that read as dark but are not porosity.
  4. Give an approximate size range if you have one, in pixels or millimetres.

“I have an image as attached. Create a node to find the white porosity on the image.”

Attach a reference image

Upload an image that shows the expected output rather than a perfect specimen. A frame containing the defect, at the resolution and lighting your line actually produces, tells the generator more than a textbook example does.

The node description field filled in beside an uploaded weld X-ray reference image showing porosity.
Description and reference image are used together — the text sets the rule, the image sets the expected output.

Verify before you rely on it

A generated node is a starting point, not a validated inspection rule. Run it across a handful of images you already know the answer for — some with porosity, some without — and check both what it catches and what it wrongly flags before you let it pre-label a dataset.

Step 4 of 4

Add the node to your pipeline

Newly created nodes appear in the left menu. Drag and drop them directly onto the workflow area, then link the node to other relevant blocks.

What to do

  1. Find the new node under Custom Nodes in the left-hand menu.
  2. Drag it onto the workflow canvas.
  3. Connect its input to the block that supplies the image, and its output to whatever consumes the detections — usually the annotation or export block.
  4. Run the pipeline across your unlabelled set. The node writes its pre-labels as you go.

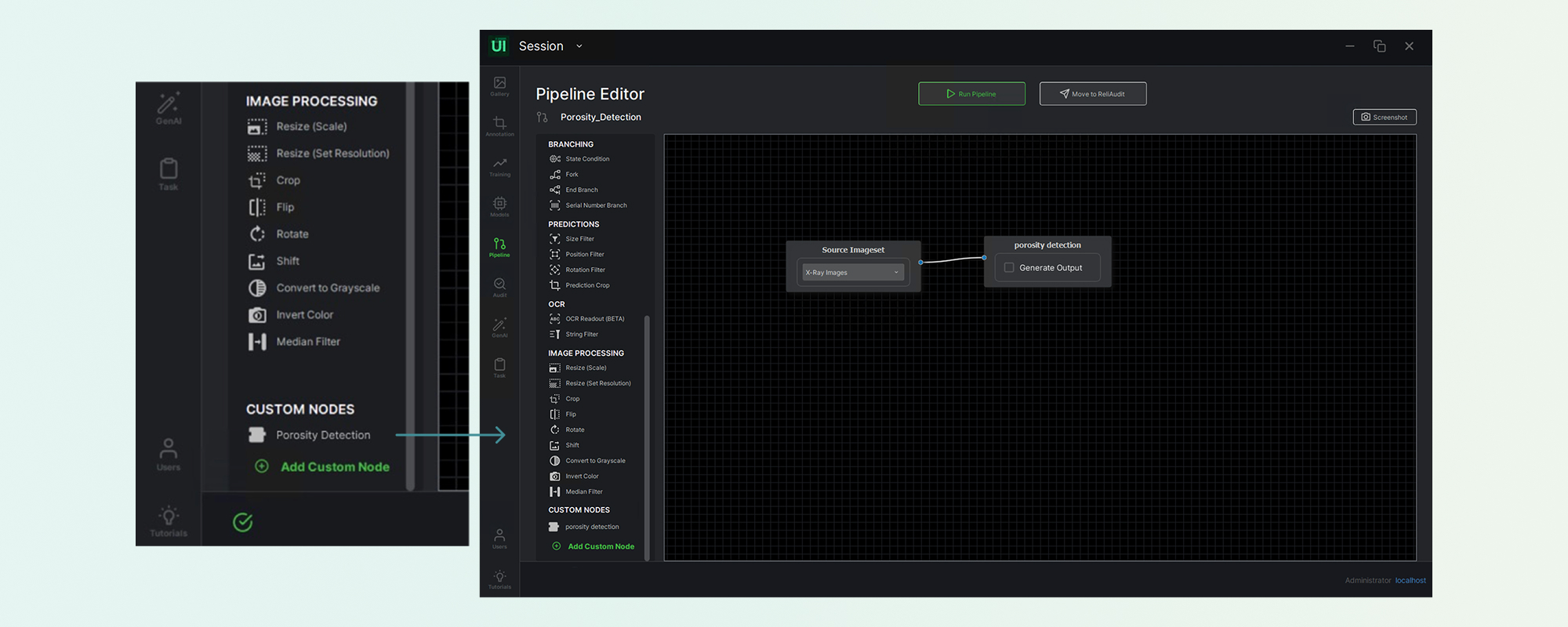

The Porosity Detection node placed on the pipeline canvas and wired to the adjacent blocks.
Once linked into the pipeline, the custom node runs like any built-in block.

Porosity detection pipeline

Built end-to-end with ReliVision custom image-processing nodes. In practice the pipeline localizes targets accurately under real inspection conditions.

< 5 min

from a blank pipeline to a working porosity detector.

1 node

added to the existing pipeline — no separate model to train.

Refinement

Refining low-confidence results

If a result falls short, the pipeline is refined with a sample image.

1

Flag the result

Mark the missed or low-confidence detection.

2

Feed it back

The example image refines the custom node.

3

Detection improves

The updated node redeploys instantly across the pipeline.

The Porosity Detection node placed on the pipeline canvas and wired to the adjacent blocks.

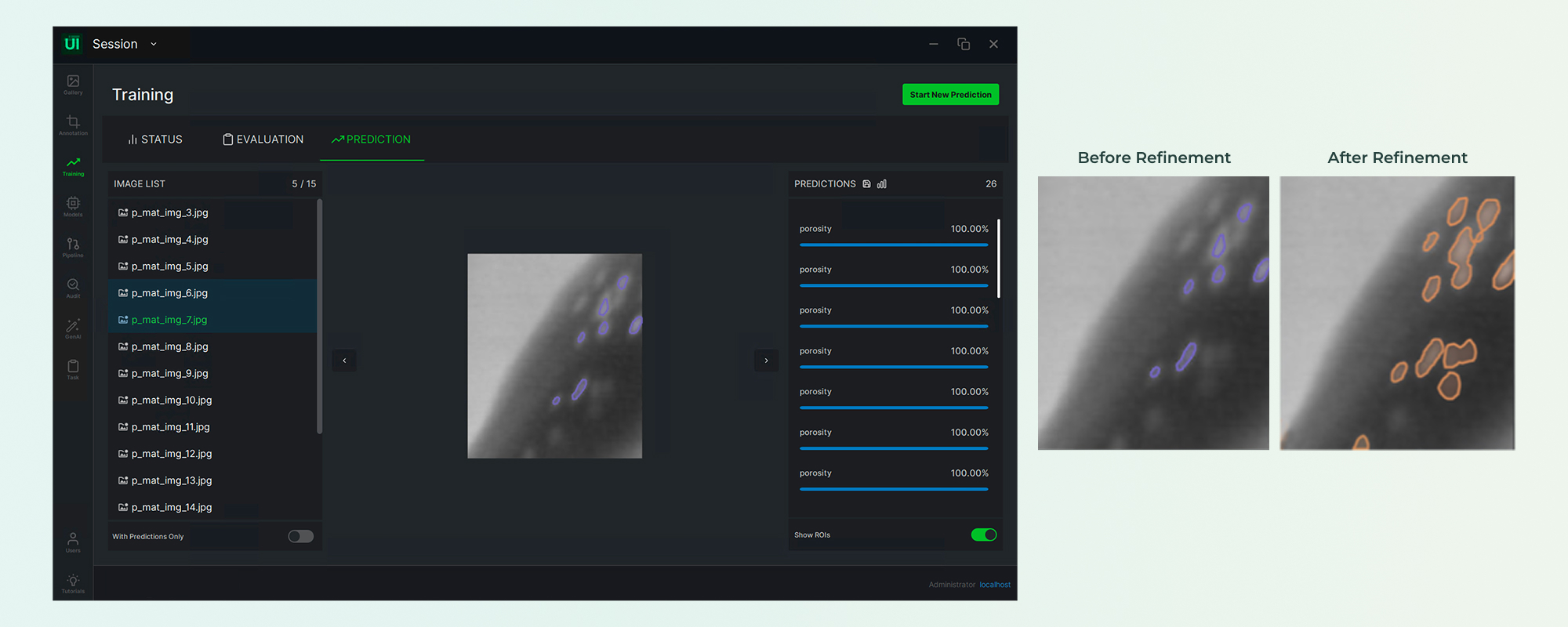

Before and after refinement on the same weld X-ray image.

Next steps

With the node running, the pre-labelled set becomes the starting point for expert review rather than a blank slate. Reviewers correct and confirm rather than draw every annotation from scratch, and the corrected set becomes the training data for the deep-learning model that will do the production inspection.

Take the pattern to the next defect type

Once one node works, repeat the same description-and-reference-image loop for the next defect class, then use the pre-labelled set as training data for your deep-learning inspection model.

Benefits of NLP and image-prompted data labeling

Faster label creation

Labels likely porosity candidates before manual review.

Safer than manual-only labeling

Provides consistent first-pass labels that can be corrected by experts.

Better DL training data

Produces structured annotations for DL training.

Practical for variable data

Classical algorithms are used for labeling support, while DL remains the approach for robust inspection.
