Export Data

Once the data is annotated, the exporting of the dataset can be done. The Export process consists of the following steps:

‍

✓ Step 1: Start Exporting

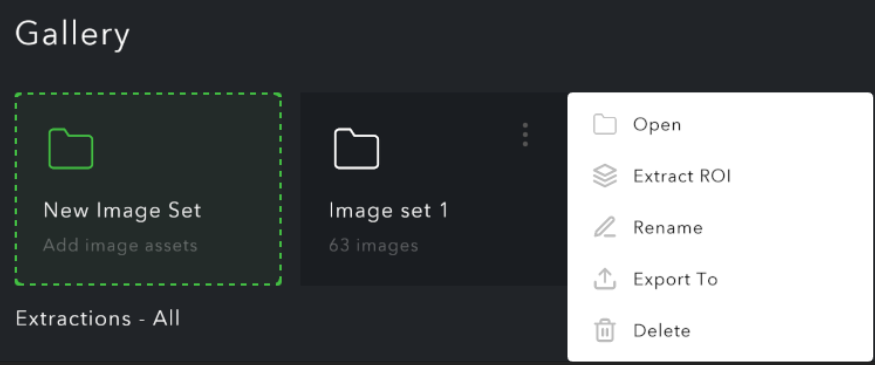

In the Folder View of the Gallery Screen, select the desired folder to export then click on the relative Context Menu Icon (

) and click on “Export To”  (Fig.19).

✓ Step 2: Select the type of annotated datasets to export

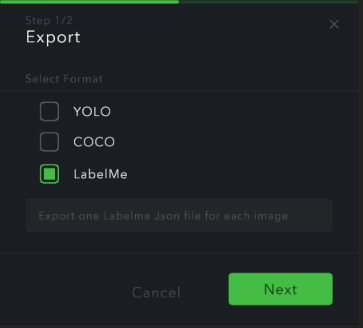

Depending on the desired type of datasets files to export (Fig.20) , choose between the following three options.

• LabelMe: Export dataset in LabelMe format
• COCO: Export dataset into COCO format
• YOLO: Export dataset as obj.data files

‍

 Then click on Next.

✓ Step 3: Select the ROI Group

Select the ROI Group that needs to be exported. Images from the Dataset can be also exported by clicking on the Slide Button “Export Images” (Fig.21).

‍

‍

✓ Step 4: Select the directory to import

From the appearing Windows File Dialog, select the directory where the data should be exported then click on OK.
The annotated dataset will be then saved into the chosen directory in the previously selected format. Both Json and Image files are saved in the local directory.

‍
