Detection of Select Characters on Metal Plates

The task is to detect imprinted alphanumeric characters “A”, “F” and “3” on metal plates. This is an object detection task.

Dataset:

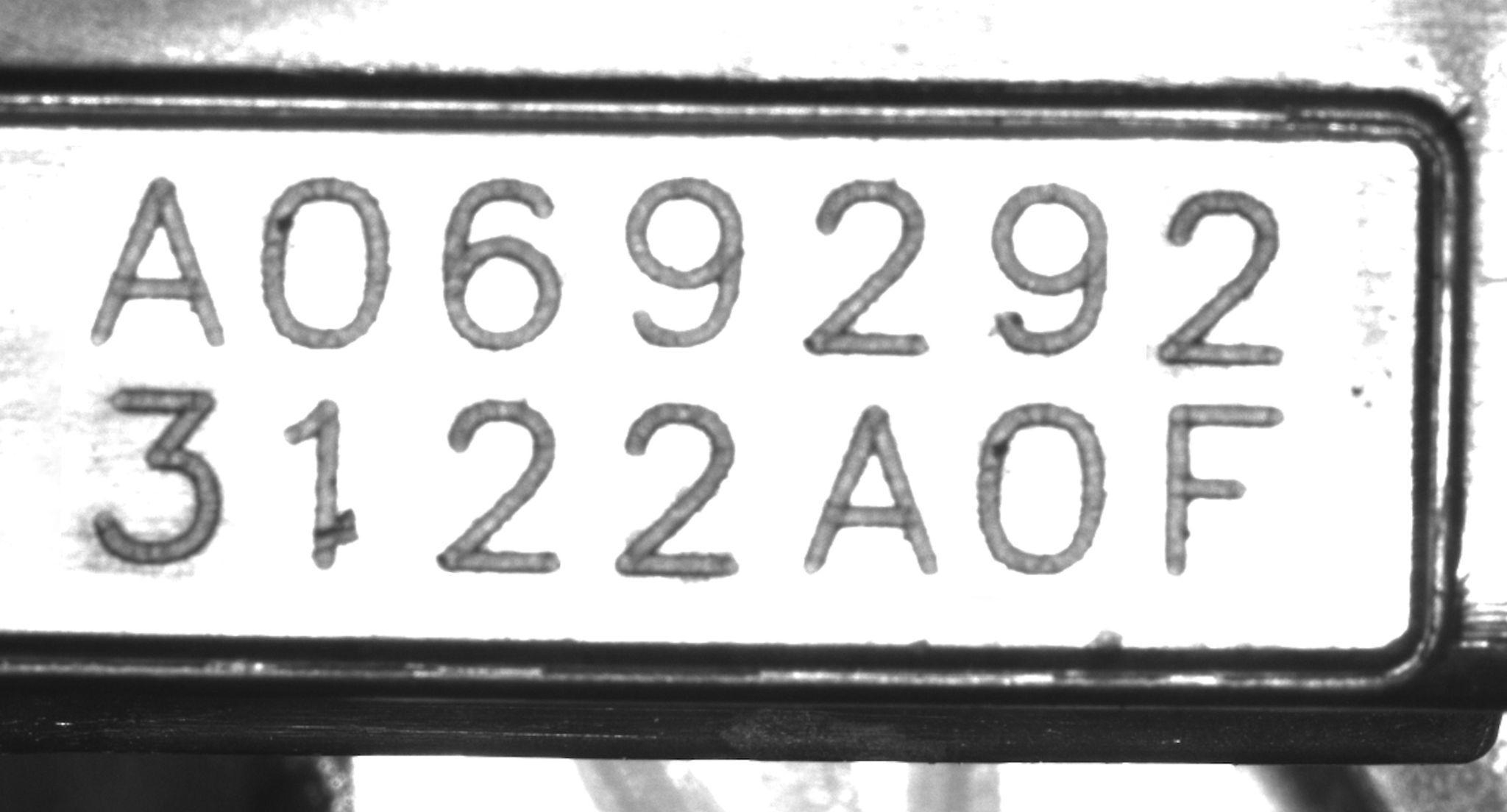

The dataset contains 50 metal plates each with an imprinted sequence of alphanumeric characters. The characters “A”, “F” and “3” are subject to inspection. A sample metal plate is shown below.

Data Loading & Annotation:

You have 2 options:

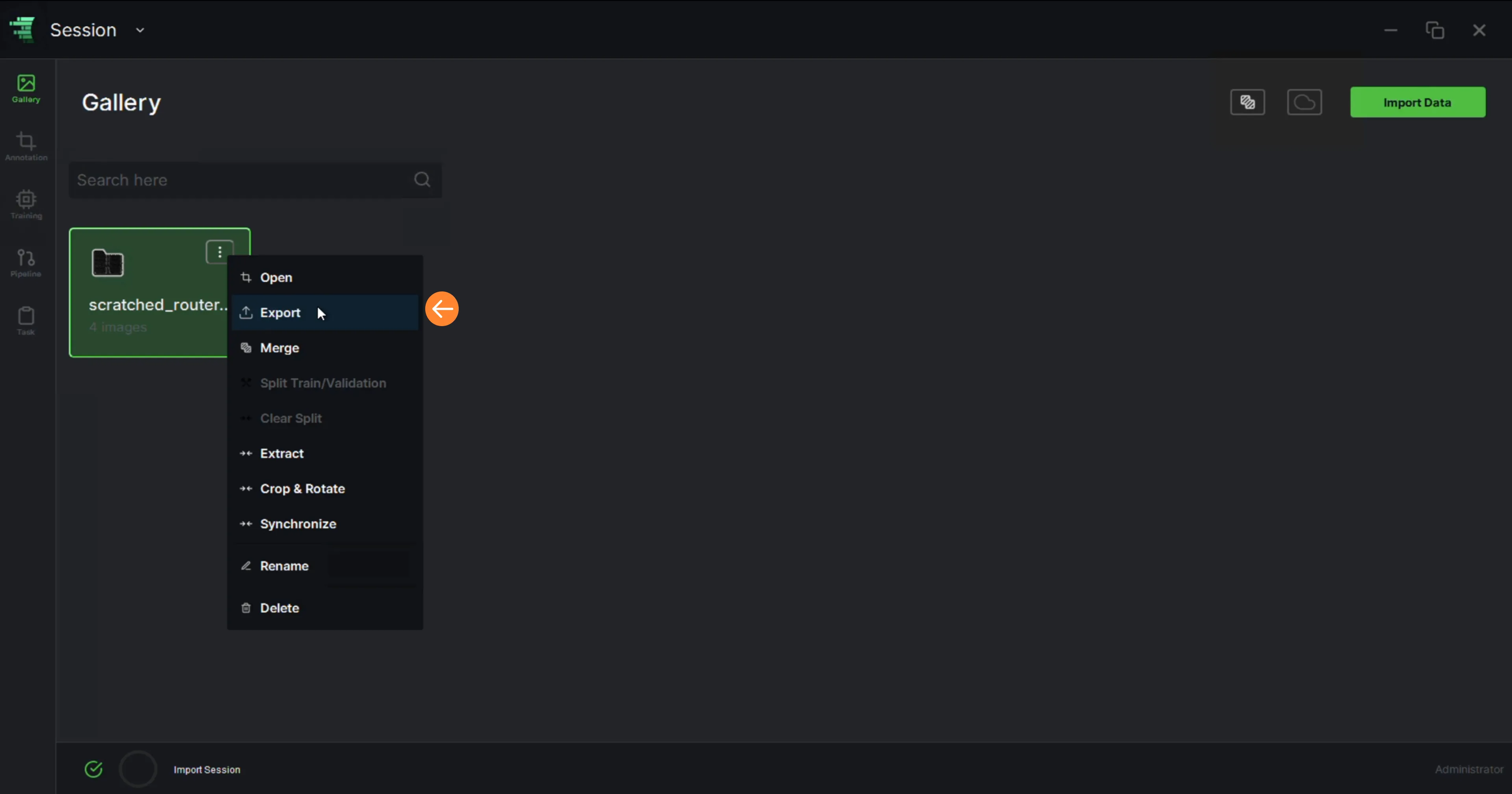

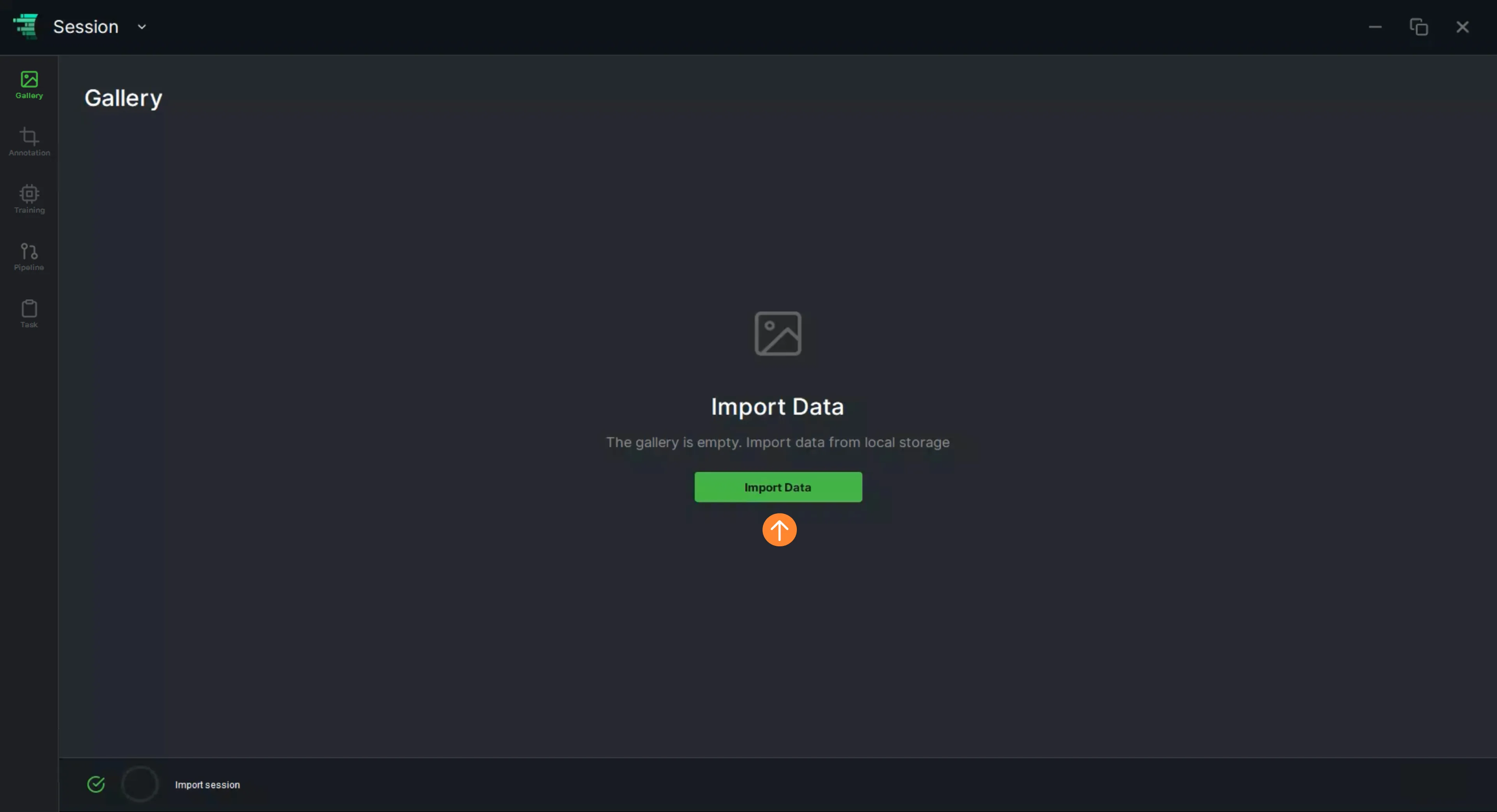

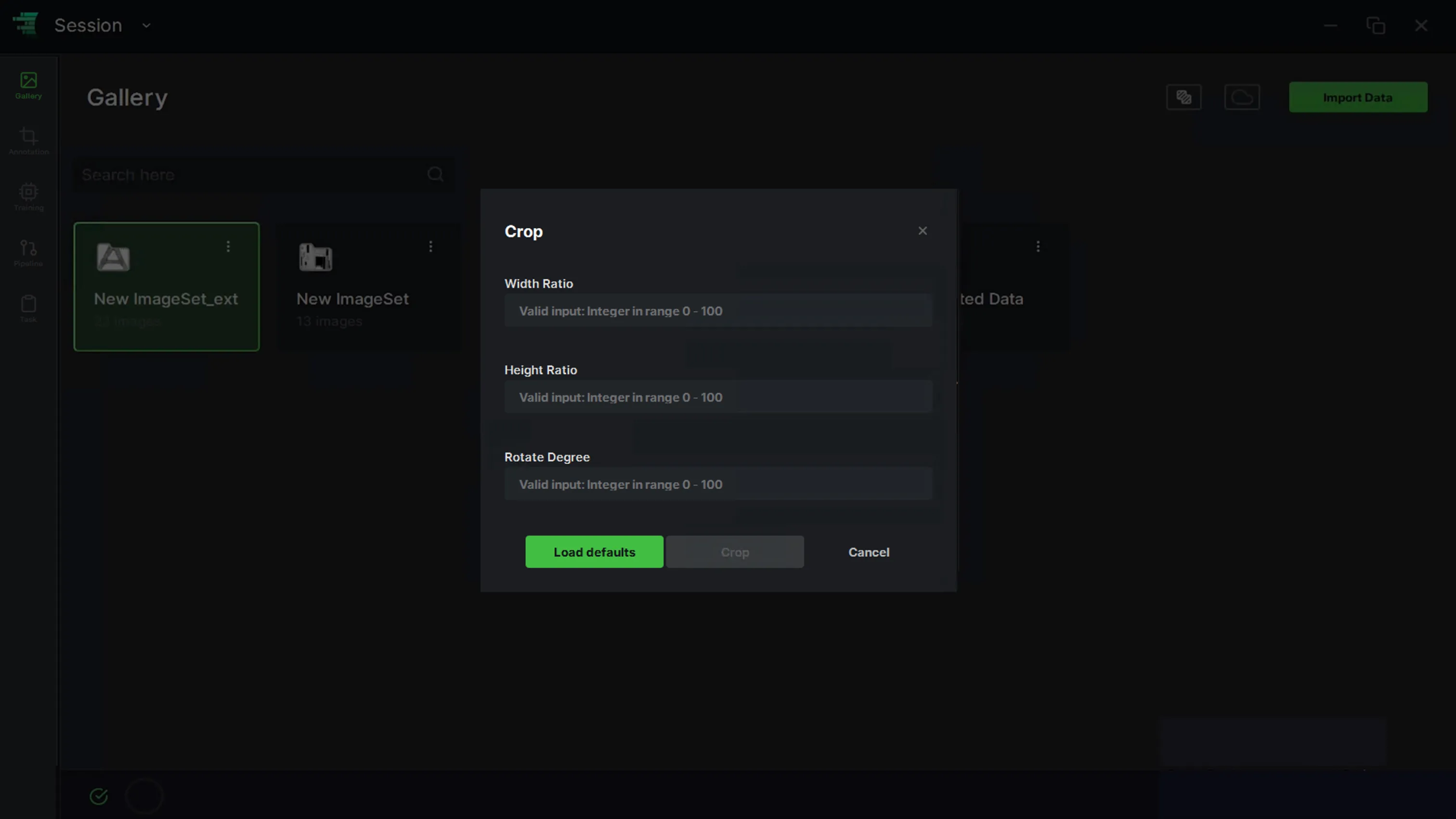

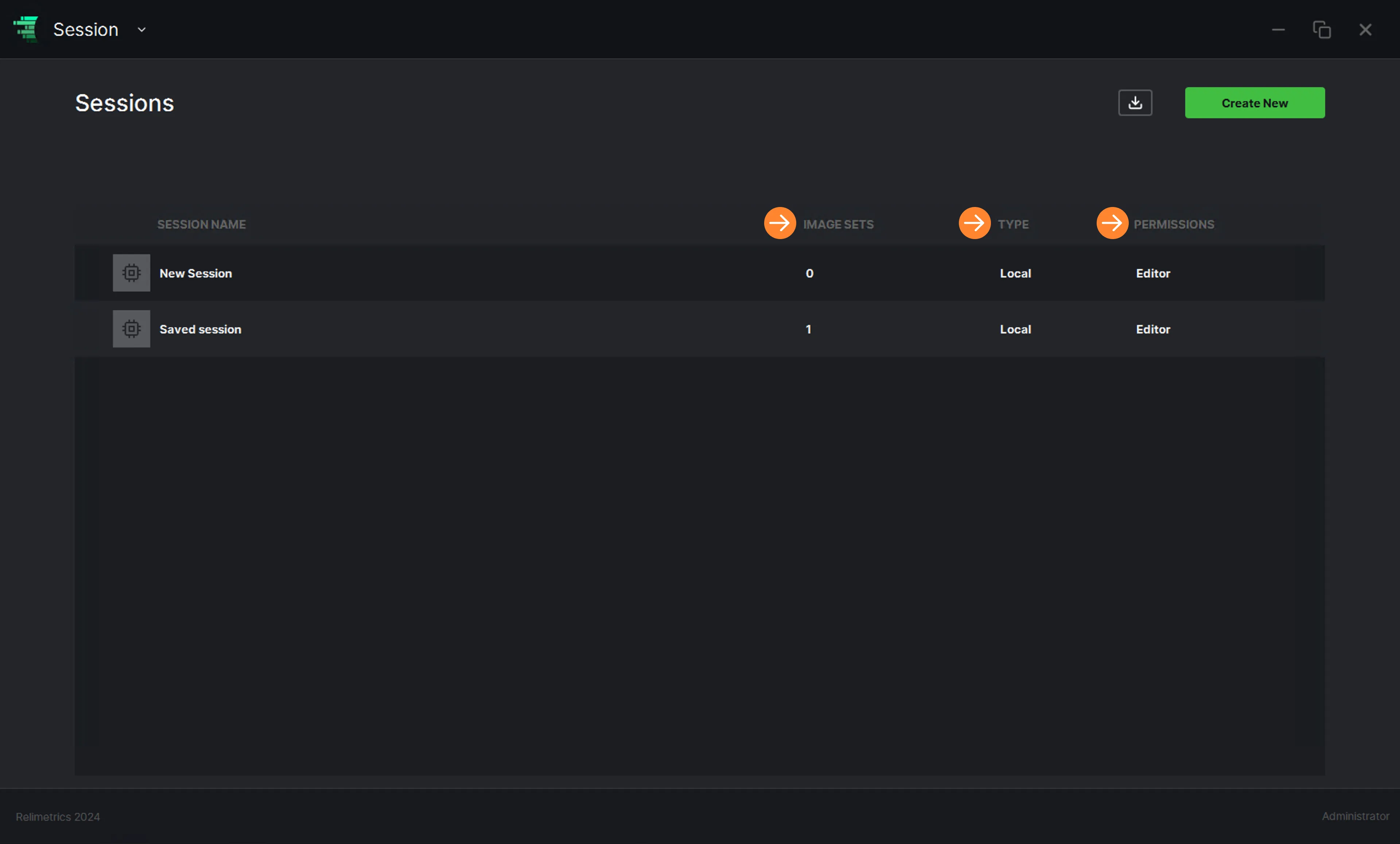

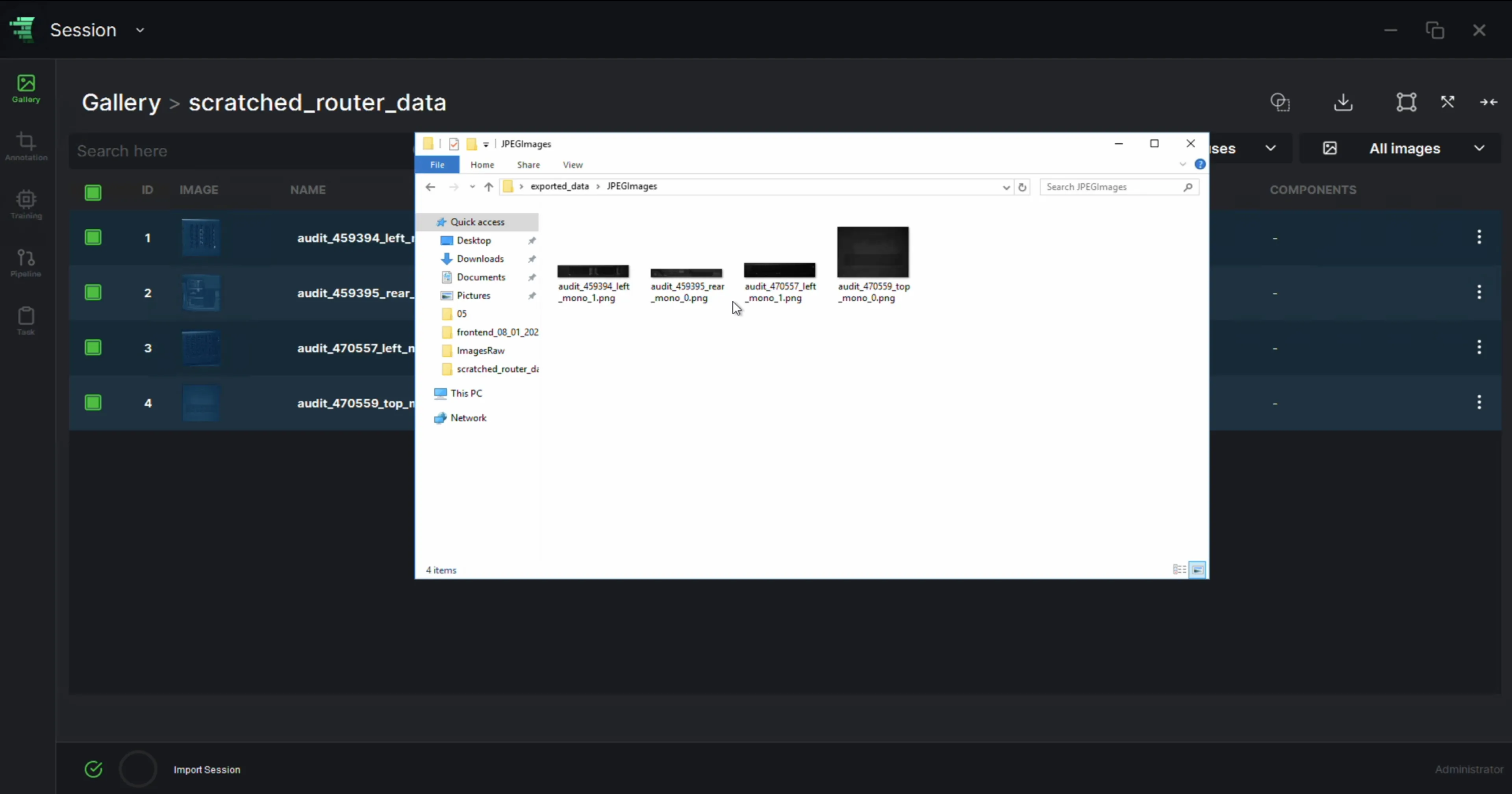

Download the data annotated with LabelMe format. Load the imageset and the annotations that you downloaded using ReliUI. Import the imageset using “Import Data” and the annotation file per image folder using the “Import Annotated Dataset” (with the LabelMe annotation format option). Your annotated dataset will be available in the gallery.

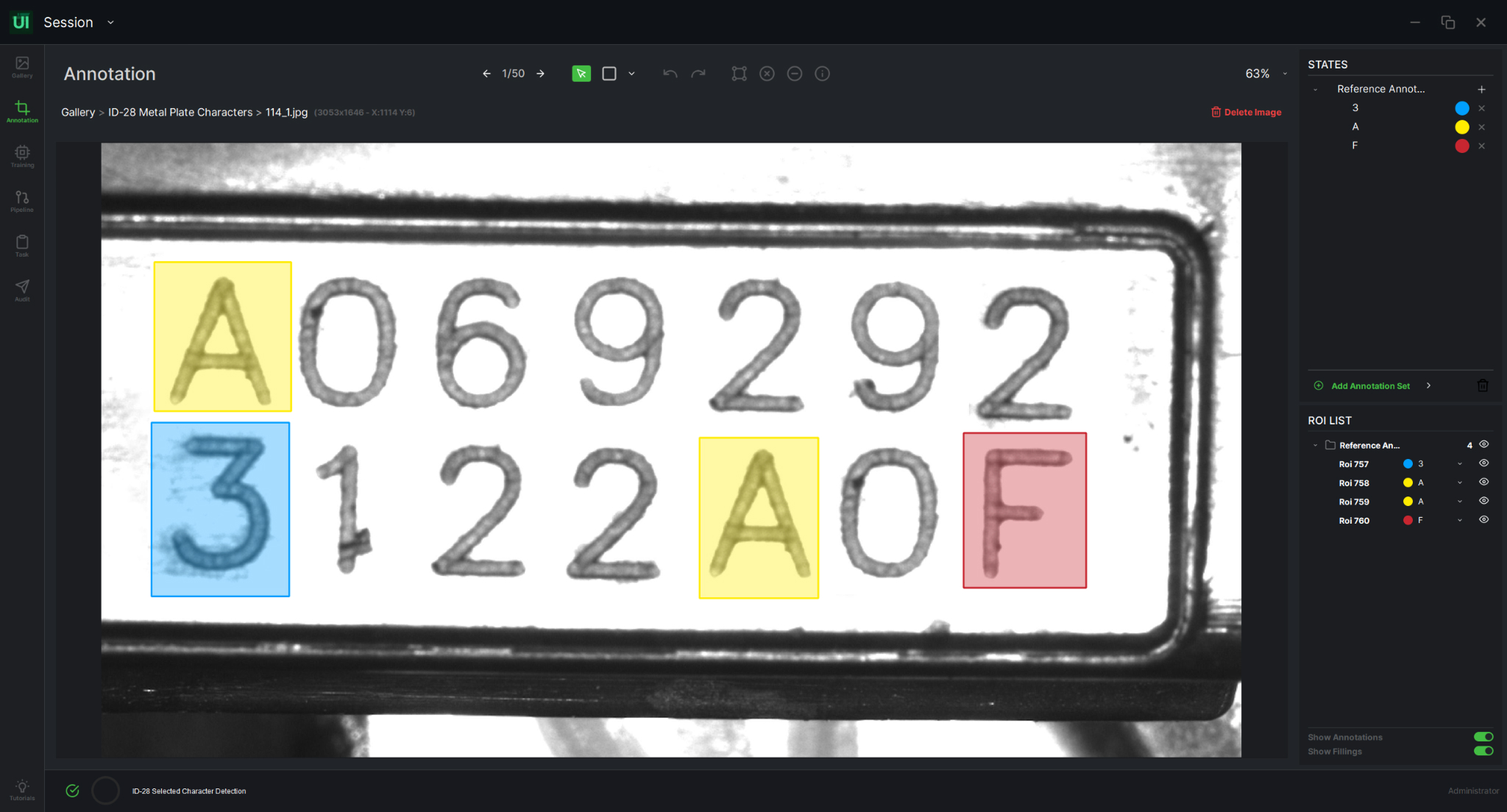

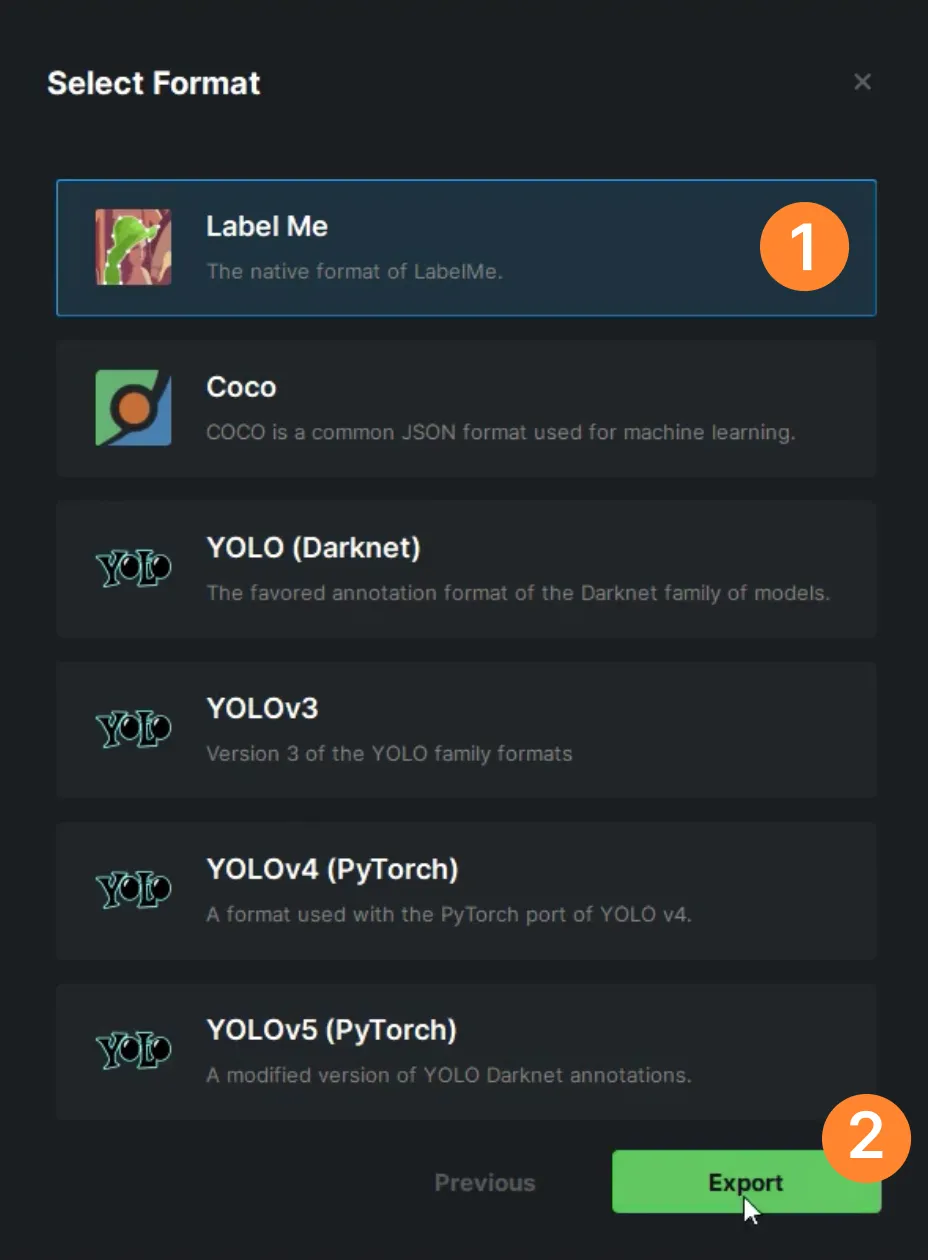

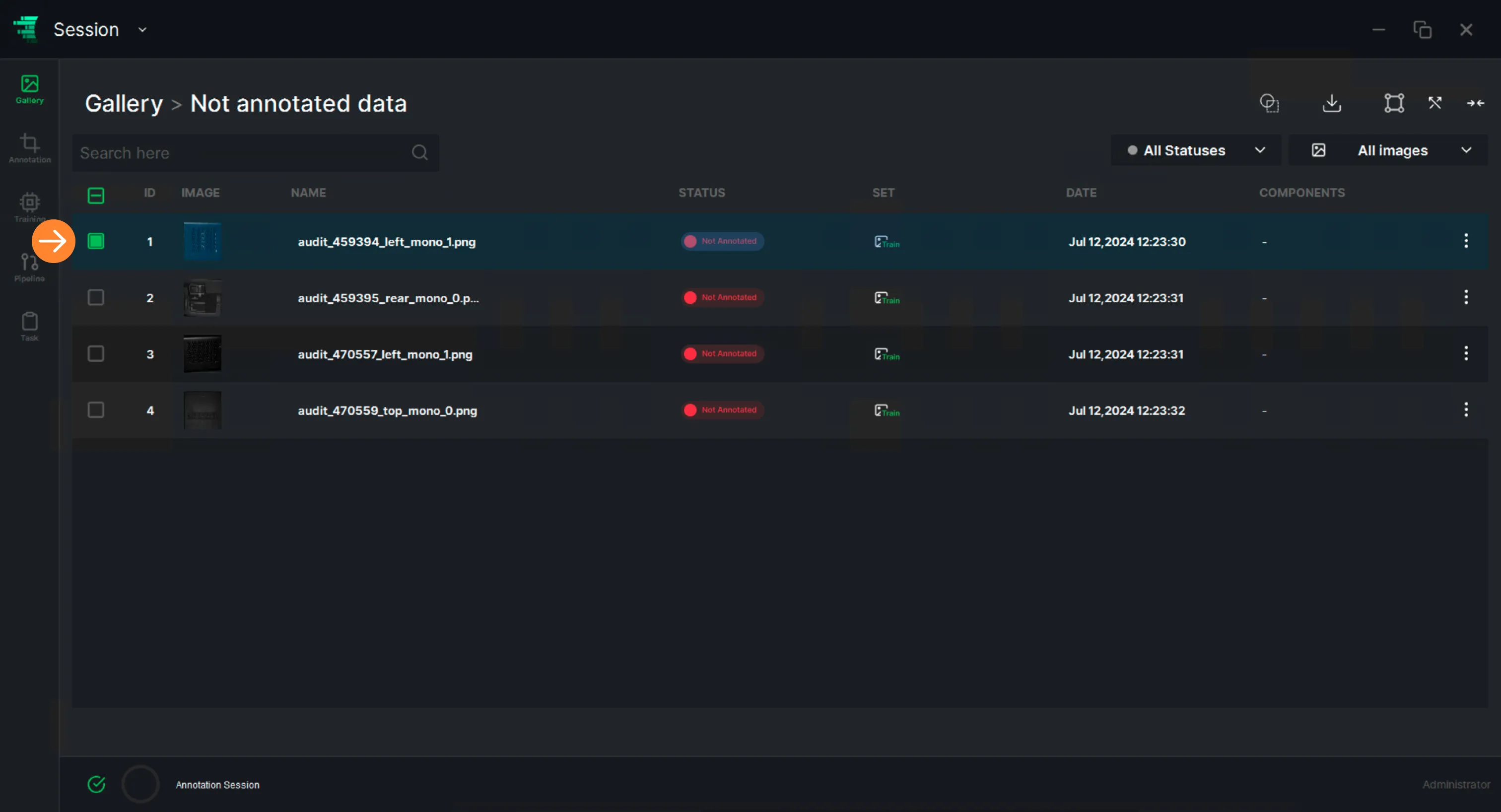

Load the imageset and annotate the data yourself in any industry standard format you like using the ReliUI’s intuitive annotation functions. Download the image folder only. Follow the ReliVision Knowledge Hub User Guide (ReliUI: Data Curation) to define the target state/label to annotate the characters (using rectangle annotation tool as the task is object detection) and to save them in an appropriate industry standard format (for which LabelMe is a good option). Sample annotation of a metal plates, with “A”, “F” and “3” characters are shown below:

Selected Characters Object Detection Model Training:

Follow the ReliVision Knowledge Hub User Guide (ReliTrainer: Training an AI Block) to train your AI model for object detection. The main steps, detailed in the User Guide, include;

Model type selection: Object Detection
Annotated dataset selection
Automated or manual train/test split which essentially spares some data for training validation purposes.
Hyper parameter setting: We have chosen the following in this use case:

Epochs: 1000
X-Y Resolution: 640
Learning Rate: 0.01 (default)
Momentum: 0.937 (default)
Weight Decay: 0.005 (default)

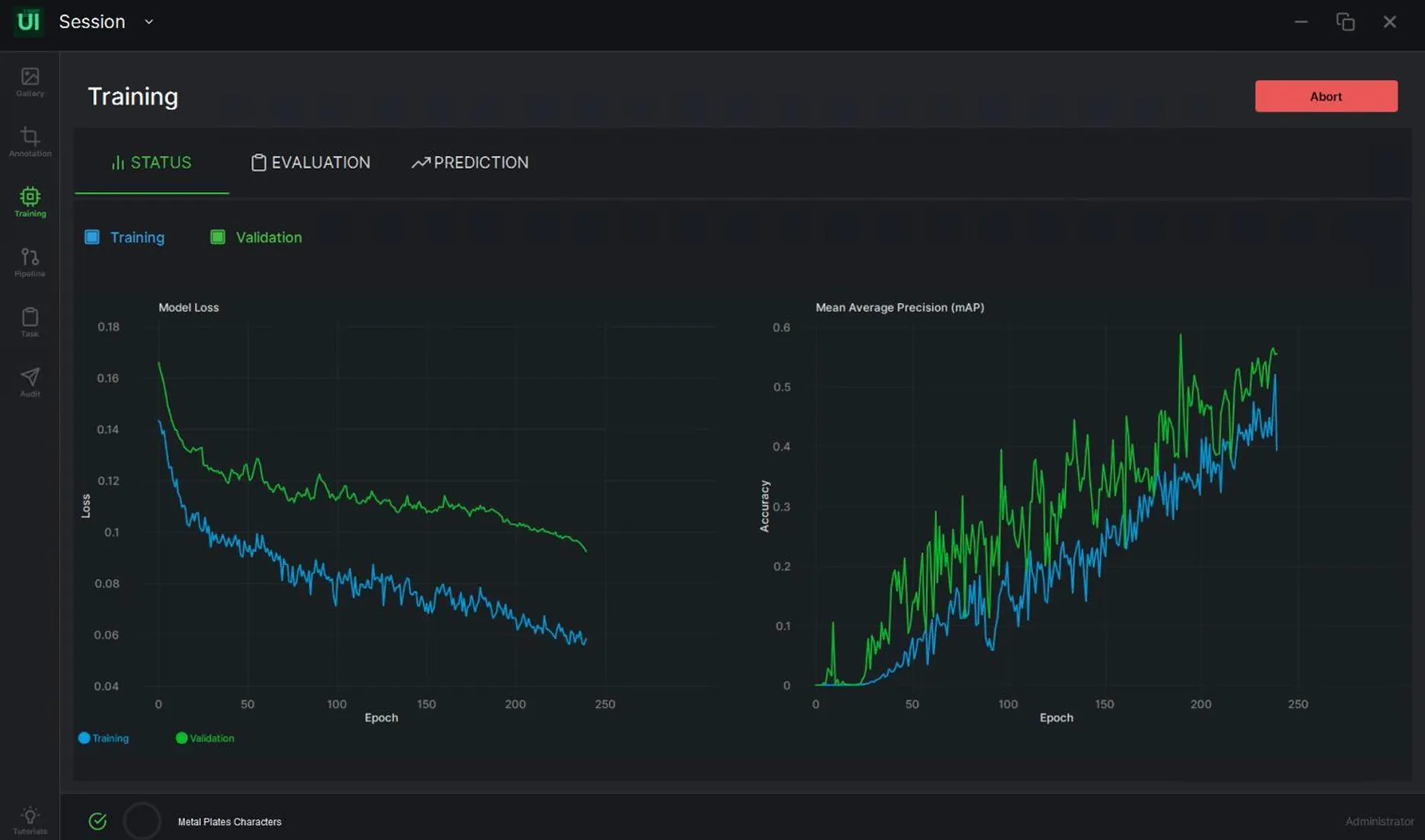

Training and Validation loss and mAP curves as a function of epochs.

Building and Running the Pipeline:

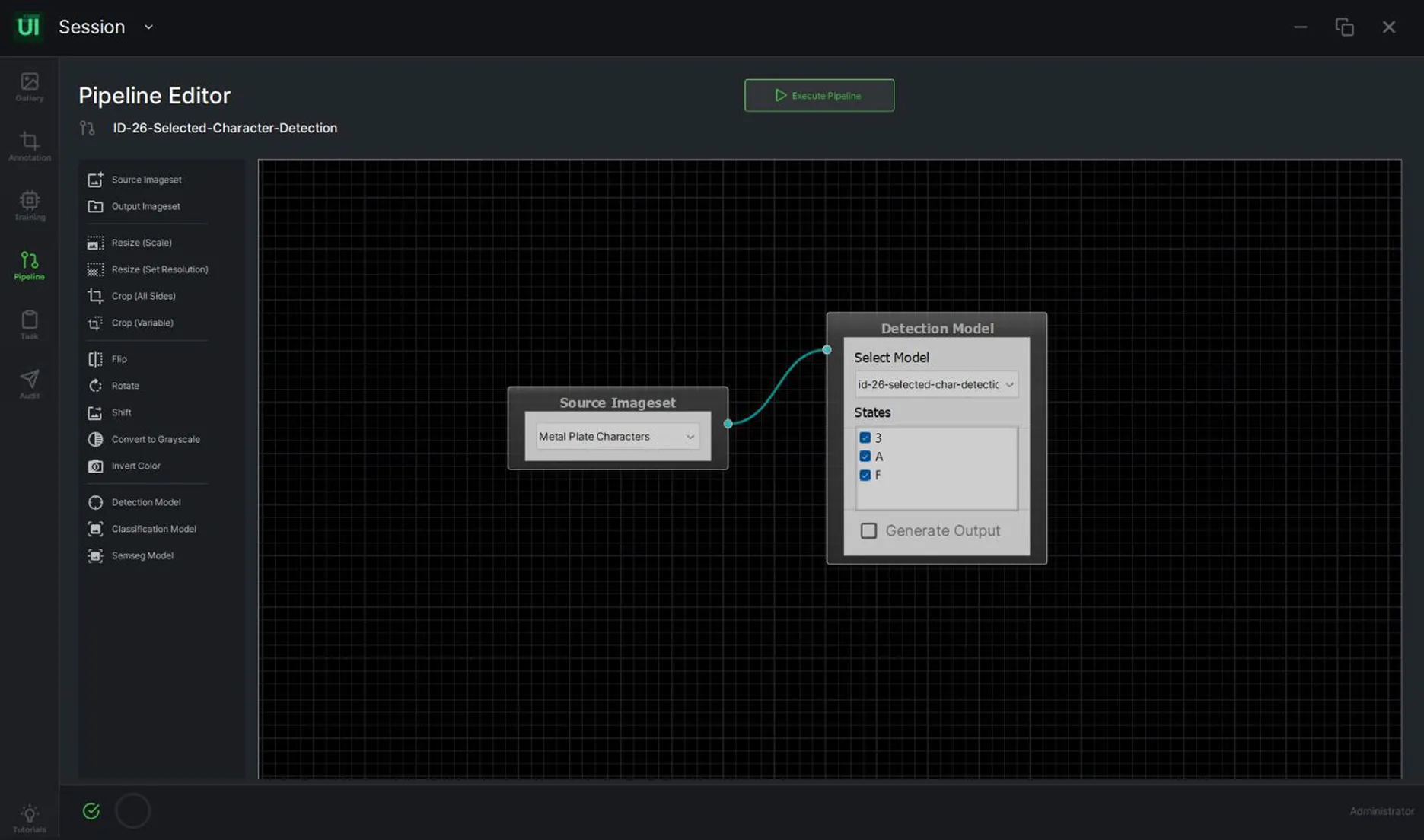

Use the pipeline editor to build your pipeline by dragging and dropping the AI/Basic blocks. You will need to select an input data source (your raw image set) and a detection AI Block connected in series as depicted below. Follow the ReliVision Knowledge Hub User Guide (ReliTrainer: Pipeline Editor / AI Pipeline).

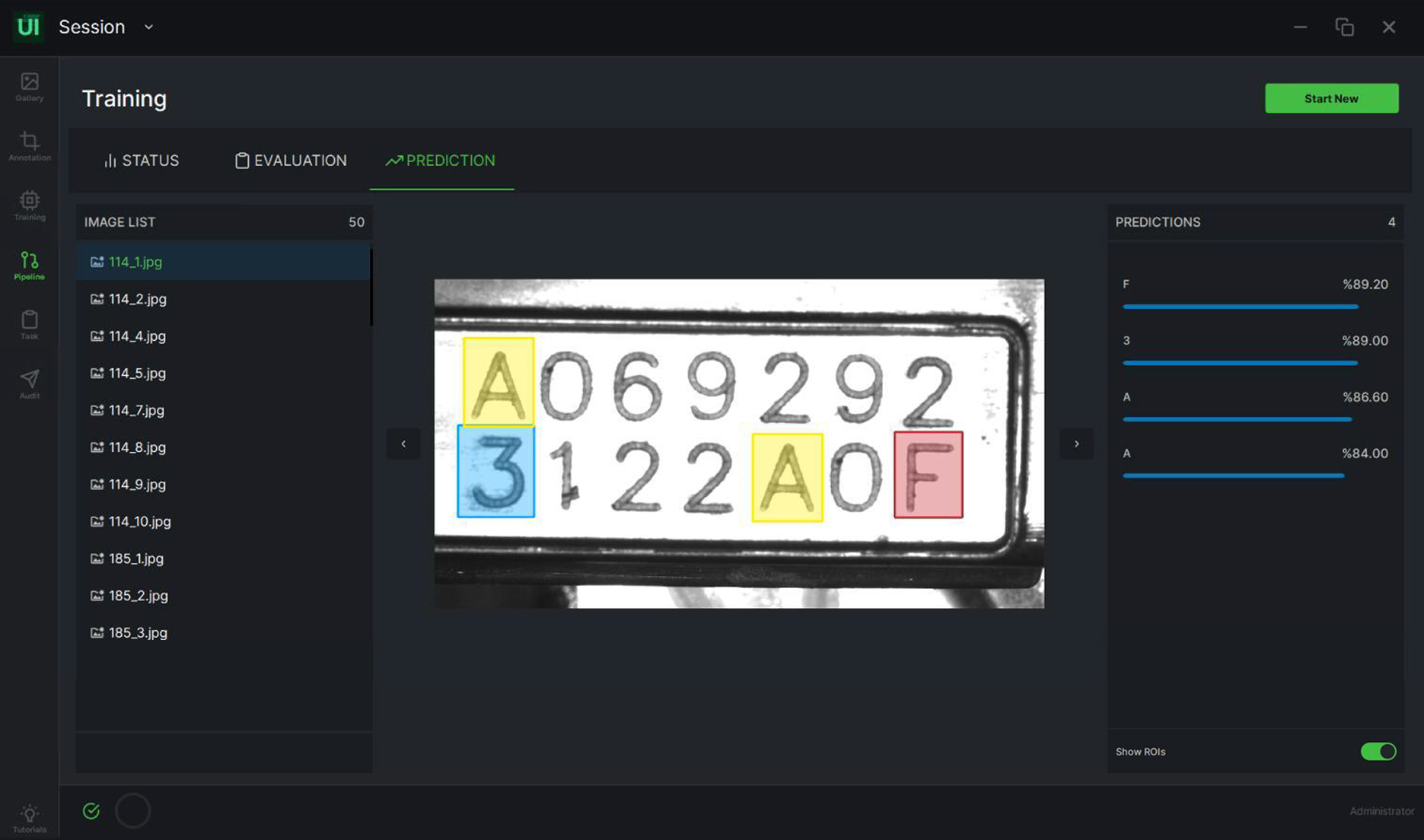

Simply run your pipeline using the execute button at the top. You can review your results using the ReliUI data annotation interface. Your pipeline’s outputs will be saved as a separate set of annotations for each image it is run on. Visit the ReliVision Knowledge Hub User Guide (ReliTrainer: Pipeline Editor / AI Pipeline) for more details. Here is an output example:

Try it by yourself.
